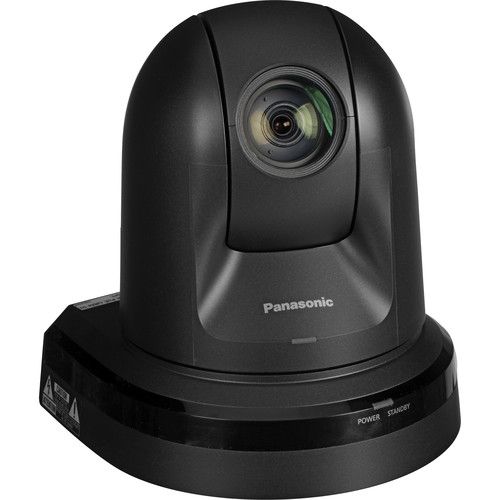

Panasonic AW-HE40HK PTZ Camera with HDMI Output (Black)


Availability: In Stock
Item ID: 370504
Manufacture: Panasonic
Condition: New

You Pay:
$2,555.00
  • MSRP: $2,745.00
  • Instant Savings: $190.00
Fast Free Shipping
Ships in 1-2 Business Days

Need Help Ask Our Experts
866-315-3566


The black Panasonic AW-HE40HK PTZ Camera with HDMI Output features a 1/2.3" MOS sensor and outputs over HDMI. When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser. This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems.

Equipped with a 4.3 to 129mm zoom lens (35mm equivalent is 31.6 to 962mm) with 30x optical zoom and 16x digital zoom, and a 1.4x digital extender, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look. The Dynamic Range Stretch (DRS) minimizes blocked shadows and blown highlights. When it gets too dark to record normal footage, this Full HD PTZ camera uses Night Mode to capture clear images in monochrome. The camera supports audio input, allowing you to capture and embed audio within the video signal. It is PoE+ compatible, allowing you to power the unit using only the single LAN cable.

Highly-accurate pan-tilt head offers precise, fast, fluid movement in all directions, enabling the capture of both slow- and fast-moving objects without excessive vibration and bounce
Freeze During Preset function may be enabled to freeze the video during preset playback. The immediately preceding still image is output during preset movements so that the swiveling movement is not displayed.
Dynamic Range Stretch (DRS) for minimizing overexposure in highlights and detail blocking in dark areas. The AW-HE40HK is equipped with High Dynamic Range (HDR) mode. When shooting and synthesizing two images with differing exposure times, the AW-HE40HK can create video with high visibility that corrects for halation and black defects even under backlit conditions
Hybrid 2D/3D Digital Noise Reduction (Hybrid DNR) allows clear image capture with minimum afterimages even in dimly-lit areas
Switching to Night Mode makes shooting possible even in low light conditions. The AW-HE40HK can also be set to switch to the mode automatically depending on surrounding light levels.
The AW-HE40HK also supports audio input, embedding and encoding. The input from the camera's switchable mic/line input can be combined with the HD-SDI, HDMI, and streaming outputs for mixing, recording or transmission.
Pan/tilt speed adjustment from 2 to 4 steps
  • Preset memory up to 100 positions.
  • Functions such as freeze during preset, digital extender zoom and color temperature settings can be assigned to the user buttons on optional Panasonic controllers.
  • Equipped with RS422 remote terminal; up to five units can be controlled via serial control from a controller.
  • Equipped with RS232C remote terminal (standard serial communication support). Up to seven units can be controlled via daisy chain connection.
  • Up to four units can be operated with a wireless remote controller (AW-RM50G sold separately).
Serial (RS-422), IP, and IR remote control capabilities
100 preset memories for rapid and precise remote recall
By connecting network devices that support the IEEE802.3at PoE+ standard, power can be supplied via LAN cable. This can lower installation costs as Since it is not necessary to install a power supply or even a local AC outlet.
Can be placed on the desktop as a standalone unit or suspended from the ceiling
Compatible with Android and iOS devices


Imaging Sensor 1/2.86"-type Full HD 3MOS

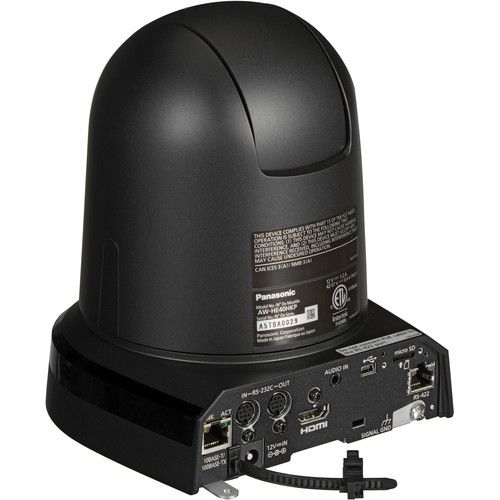

Input Genlock: 1 x BNC (Black Burst Sync, tri-level sync supported. Locking to a color subcarrier is not possible with BBS)

PoE+: 1 x RJ45 (IEEE802.3at standard)

RS-422A: 1 x RJ45

RS-232: 1 x RS-232C

Stereo Analog Audio: 1 x 3.5 mm
High impedance
During Mic Input:
Stereo mic (plug-in power, on/off switching via menu)
Supply Voltage: 2.5 ±0.5 V
Approx. -40 ±3 dBV (0 dB=1 V/Pa, 1 kHz) mic input sensitivity
During Line Input:
Approx. -10 ±3 dBV input level

Power: 1 x 12 VDC barrel
Output HDMI: 1 x HDMI Type A (HDCP is not supported; Viera Link is not supported)

3G/HD/SD-SDI: 1 x BNC (SMPTE424/SMPTE292/SMPTE259, 75 Ohms)

Composite: 1 x BNC (NTSC/PAL 1.0 V p-p, 75 Ohms)

RS-232: 1 x RS-232C
Output Formats IP:
Channel 1 (H.264):
1080p/720p: 60/50, up to 24 Mb/s, 48 kHz (AAC)

Channel 2 (H.264):
1080p/720p/640 x 360/320 x 180/160 x 90: 30/25/15/12.5/5, up to 24 Mb/s, 48 kHz (AAC)

Channels 3/4 (H.264):
720p/640 x 360/320 x 180/160 x 90: 30/25/15/12.5/5, up to 24 Mb/s, 48 kHz (AAC)

SDI/HDMI:
1080p: 59.94/50/29.97/25/23.98
1080i: 59.94/50
1080PsF: 29.97/25/23.98
720p: 59.94/50
576p: 50
480p: 59.94
Lens Motorized 20x zoom, f/1.6 - 3.4
(f=4.5 - 90mm; 35 mm equivalent: 32.13 - 642.5mm)
Focus Distance 31.5 - 15.7" (800 - 400 mm)
Focusing switchable between auto and manual
Color Separation Optical System 3MOS
Minimum Illumination 2 lx (50%, f/1.6, 36 dB)
Horizontal Resolution 1000 TV lines Typ (center area)
Gain Selection Auto, 0 - 36 dB
Frame Mix 0/6/12/18/24 dB
Electronic Shutter Speed 59.94p/59.94i: 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

29.97p: 1/30, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

23.98p: 1/24, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

50p/50i: 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

25p: 1/25, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
Synchro Scan 59.94 Hz: 60.15 - 642.21 Hz
50 Hz: 50.15 - 535.71 Hz
Gamma HD, SD, FILMLIKE1, FILMLIKE2, FILMLIKE3
0.30 to 0.75 (manual setting)
White Balance AWB A, AWB B, ATW, 3200K, 5600K, VAR (2000 - 15000K)
Chroma Variability: Off, -99 to 40%
Scene File Scene1, Scene2, Scene3, Scene4
Synchronization System Internal/External synchronization (BBS/Tri-level sync)
Installation Standalone (desktop) or suspended (hanging)
Pan/Tilt Control IP Connecting Cable:

With Hub:
Cat 5e or above straight cable up to 328' (100 m)

Without Hub:
Cat 5 or above crossover cable up to 328' (100 m)

RP Connecting Cable:
Cat 5 or above straight cable up to 3280' (1000 m)
RS-422 A, AW series protocol
Pan/Tilt Speed 0.08 to 60°/sec
Panning Range ±175°
Tilting Range -30 to 210°
Quietness NC35 or less
Computer Requirements Intel Core 2 DUO 2.4 GHz or more

Windows: Windows 8.1 Professional 64-bit / 32-bit, Internet Explorer 11
Windows 8 Professional 64-bit / 32-bit, Internet Explorer 10
Windows 7 Professional SP1 64-bit / 32-bit, Internet Explorer 11, 10, 9, 8
1 GB RAM (2 GB or more for 64-bit editions)

Mac:
OS X 10.9, Safari 7.0.2
OS X 10.8, Safari 6.1.2
OS X 10.7, Safari 6.1.2
2 GB RAM

Mobile:
iOS 7.1
Android (version not specified by manufacturer)

Other:
CD-ROM drive (for using Operating Instructions and various software)
Adobe Reader (for viewing Operating Instructions on the CD-ROM)

*Internet Explorer for Windows UI is not supported (use the desktop version)
*Windows XP compatibility mode is not supported
*64-bit version of Internet Explorer is not supported
Network Function 1 x 10BASE-T/100BASE-TX port
Image Display Resolution: 1024 x 768 resolution or more
Color Generation: True Color 24-bit or more
Controller Supported AW-RP120, AW-RP50, AK-HRP200
Power Requirements 12 VDC (AC adapter included)
42-57 VDC (PoE+ power supply)
Current Consumption 1.8 A (AC adapter supplied)
0.6 A (PoE+ power supply)
Ambient Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 122°F (-20 to 50°C)
Humidity 20 to 90% (no condensation)
Dimensions 7.1 x 9 x 9.2" (18 x 23 x 23 cm), excluding protrusions, cable cover, and direct ceiling mount bracket
Weight Approx. 6.8 lb (3.1 kg), including mount bracket
Packaging Info
Package Weight 11.4 lb
Box Dimensions (LxWxH) 15.9 x 13.3 x 12.4"

• Panasonic AW-HE130 HD Integrated PTZ Camera (White)
• Mount Bracket
• Drop-Prevention Wire
• Bracket Mounting Screws (Bind-Head, M4 x 10mm)
• Main Unit Mounting Screw (M3 x 6mm)
• Cable Cover
• Power Cable
• AC Adapter
• Brand New Factory Fresh Import Model
